The RUGGEDCOM RPS2410 and RPS1300 rugged Power over Ethernet power supplies and RP100 Power over Ethernet injectors help reduce the cost of networking in harsh environments by eliminating the need for separate power and data cabling.
Everything speaks for RUGGEDCOM products: Siemens performs HALT tests (Highly Accelerated Life Testing) early in product development to eliminate design or performance weaknesses. The subsequent HASS tests (Highly Accelerated Stress Screening) ensure that the products are free from manufacturing errors and defects. RUGGEDCOM products stand for reliable and error-free operation in harsh industrial environments.
The increasing spread of IP network technologies in mission-critical real-time control applications requires immunity to electromagnetic interference that goes far beyond the immunity of common network products. Technologies used in RUGGEDCOM products meet all IEC 61850-33 immunity requirements with no communication interference or delays. In addition, products with this technology meet the requirements for interference-free devices according to IEEE 1613 class 2. The innovative Zero Packet Loss™ technology offers the same interference immunity as the protection technology.
RUGGEDCOM products are not only immune to electromagnetic interference, they also offer extensive, future-oriented cybersecurity functions. These include multi-level user passwords, SSH/SSL (128-bit encryption), port enable/disable functionality, MAC-based port security, VLAN (802.1Q) for logical separation and traffic protection, centralized RADIUS password management as well as SNMPv3 authentication and 56-bit encryption.
Like all RUGGEDCOM products, PoE power supplies and injectors are engineered to meet and exceed recognized industry standards when it comes to performance in harsh environments.

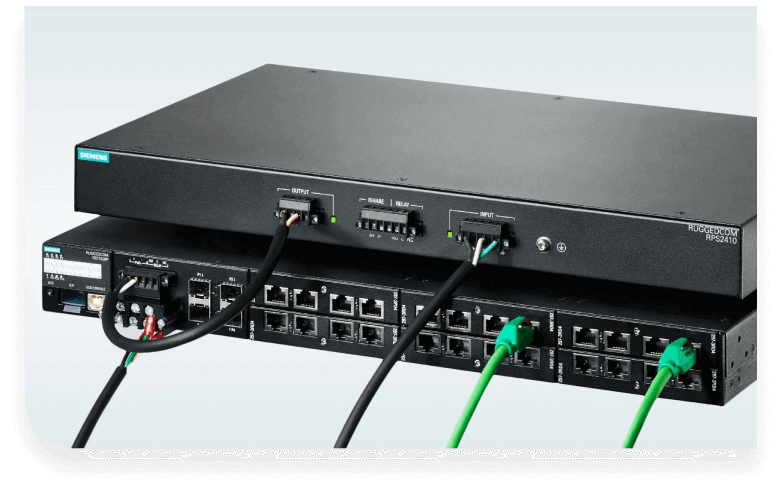

The rugged RUGGEDCOM RPS2410 power supply is designed to meet the high power demands of physical security, access control, wireless connectivity, lighting and other PoE applications in industrial networks.
A single RUGGEDCOM RPS2410 can provide up to 600 watts, and cascaded with two other RPS2410 units up to 1560 watts of DC power at high temperatures of up to 75°C.
RUGGEDCOM RPS2410 is compatible with all RUGGEDCOM Power over Ethernet switches such as: B. RUGGEDCOM RST2228P, RST916P, RSG920P and RS900GP. Tested and certified to the NEMA TS 2 standard, RUGGEDCOM RPS2410 is the ideal solution for powering multiple IoT devices in ITS networks and other industries exposed to harsh environmental conditions.
RUGGEDCOM RPS2410
Tested and certified to NEMA TS 2 standards, the RUGGEDCOM RPS1300 is the ideal solution to provide PoE power to RUGGEDCOM devices in harsh conditions such as those found in roadside traffic switchboards.
RUGGEDCOM RPS1300 can fully support four 30W PoE ports of RUGGEDCOM RSG920P and RUGGEDCOM RS900GP, or all eight 15W PoE ports of RS900GP. This makes it ideal for applications where PoE devices such as B. PTZ cameras, VoIP phones or Bluetooth / Wi-Fi-enabled sensors can be used.
RP1300 compact power supply

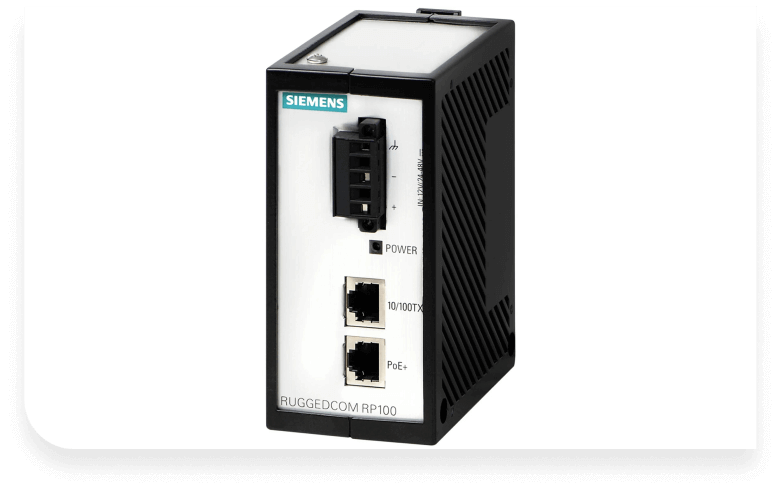

RP100 PoE Power Injector
| RPS2410 | RPS1300 | RP100 | |
|---|---|---|---|
| Type | PoE power supply | PoE power supply | PoE power injector |
| Description | Reliable 600W rack mount power supply for PoE applications with high power requirements | Provides up to 140 watts of DC power to support up to four 802.3at ports or eight 802.3af ports; for all RUGGEDCOM Power-over-Ethernet products | Single RJ45 port power injector for PoE (IEEE802.3af + 802.3at) |
| type of power supply | Input: AC 120/240V, DC 150/250V Output: DC 54V/11.1A | Input: AC 120/230V Output : DC 54V/2.6A | - |
| power supply | 1 x power supply input 1 x output terminal (2 pins output, 2 pins input) 2 x ISHARE | 1 x power supply input 1 x output terminal (2 pins output, 2 pins input) | - |
| signalling contacts | 1 x normally open (NO) 1 x normally closed (NC) 1 x common (C) relay output | 1 x normally open (NO) | - |
| Assembly | 19-inch rack mount or panel mount | Compact DIN rail mounting | Compact DIN rail mounting |
| Dimensions (mm) | Width 440 x Height 51.5 x Depth 267.5 | Width 42 x Height 125 x Depth 125 | Width 56.5 x Height 117.5 x Depth 95.2 |
| operating temperature range | -40°C to +75°C | -40°C to +75°C | -40°C to +85°C |
RUGGEDCOM solutions are robust and enable interference-free communication even with strong electromagnetic interference, at extreme temperatures and over long distances. Here's how RUGGEDCOM solutions have proven themselves. RUGGEDCOM products not only offer outstanding product properties, but also meet numerous international standards.
